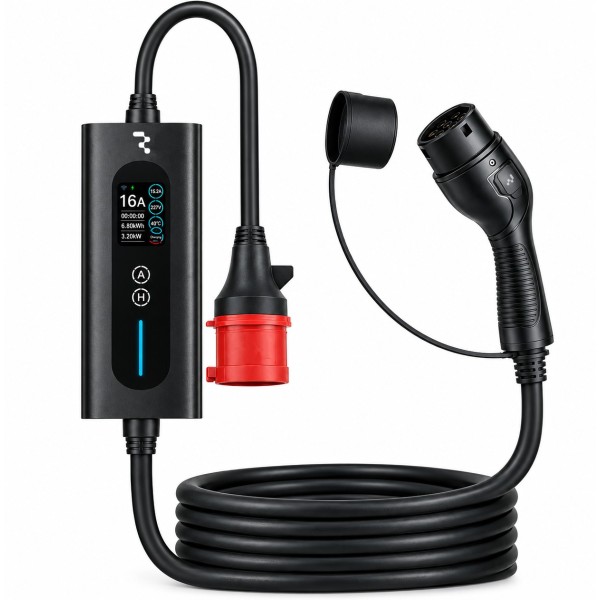

EV-laadija Reach PC62-11 3 phases Type2 16A 11kW 5.0m

Specifications:
Connector type: Type 2 (IEC 62196) and red CEE 16 A plug
Charging current: 6–16 A (3-phase, adjustable)
Maximum charging power: 11 kW
Cable length: 5 m
Protection rating: IP65
Operating voltage: AC 380–480 V
Control box dimensions: 220 x 100 x 60 mm
Safety rating: IP65
Operating temperature: -30°C ~ +50°C
Operating humidity: 5% ~ 95% RH
RCD protection: Type B, 30 mA AC / 6 mA DC
Protection against overheating, overvoltage, undervoltage, overcurrent, current leakage, improper grounding, voltage surges, and abnormal mains frequency.
Warranty: 24 months

Package contents: charging station, power cable, wall mount with mounting screws, cleaning cloth

Real-Time Charging Control
The integrated 2.4" display provides detailed information about the charging process in real time, allowing you to monitor and control the charging parameters.

The following parameters are displayed:
Maximum current: the maximum current that can be used by the charging station.
Accumulated energy: the total energy accumulated during the charging session.
Charging time: how long the charging process has been running.
Charging unit temperature: the current temperature of the charging unit.
Mains voltage: the current mains voltage.
Instantaneous charging power: the actual power currently being supplied to the vehicle.
Instantaneous charging current: the current charging current.
Charging status: displays the current charging status.

Display control menu options:
Current adjustment: allows you to change the charging current – 6 / 8 / 10 / 13 / 16 A.
Charging start time setting: allows you to set the charging start time up to 12 hours in advance.
Grounding mode control: allows you to enable or disable the grounding protection mode depending on the operating conditions.
